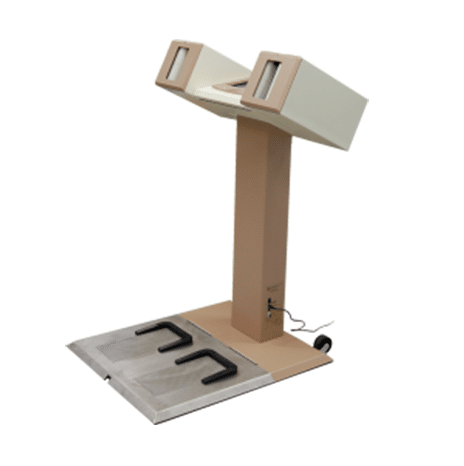

Model 4906AB Alpha-Beta hand and foot monitor

Galery
Galery

Ask for a quote

Contact a technical expert | Dowload the datasheet

Alpha and beta contamination monitoring system

The Model 4906AB is an affordable alpha and beta contamination monitoring system designed to check the hands and foots of personnel.

Advantages

  • Proportional alpha-beta gas flow probes
  • Large LCD user interface
  • Automatic routines for detector setup and alarm calculations
  • Integrated Ethernet interface
  • One-handed operation mode
Description
Specification
Applications
Resources

The Model 4906AB is an affordable alpha and beta contamination monitoring system designed to examine the hands and feet of personnel. Featuring a spacious color LCD screen, this tool provides a user-friendly presentation of system status and alerts to possible contamination.



The system is equipped with six gas flow proportional type detectors, with metering activated by optical switches. Alerts are signaled locally and can be reinforced with optional relays to notify remote devices or by using a top mounted tower light. Thanks to an integrated Ethernet interface, it is possible to connect to the network to centralize metering data and monitor the status remotely.



All maintenance operations can be performed from the front of the instrument. Access to detectors, for quick replacement or repair, is simplified with hinged top covers. In addition, the unit has wheels at the rear to facilitate moving the instrument from place to place.

DetectorsSix gas flow proportional: two detectors for feet, and four detectors to cover both sides of hands
Counting GasP-10 or equivalent
EfficiencyHand Detectors90S/90Y23%
230Th 15%
Foot Detectors90S/90Y11%
230Th5%
Display30.7 cm (12.1 in.) diagonal, TFT LCD SVGA
ElectronicsFanless motherboard running Embedded Windows™ 7
Count TimeAdjustable from 1 to 1000 seconds
ControlsLCD touchscreen facilitates all control functions with the exception of:

  1. power on/off button
  2. one hand operation button
  3. alarm acknowledgment button
ConstructionWelded aluminum, with powder coat finish, stainless steel base, and two offset wheels for portability
Temperature0 to 40 °C (32 to 104 °F)
Humidity0 to 95% RH
Power85 to 265 Vac, 24 W maximum
Size (H x W x L)121 x 79.8 x 90.2 cm (47.6 x 31.4 x 35.5 in.) step-up only 3.8 cm (1.5 in.) high
Weight72.6 kg (160 lb)
  • Nuclear industry
  • Medical and Pharma sectors
  • Area entry/exit contamination control

Product sheet

Ludlum Hand & Foot Monitor Comparison Table (pdf / 55,99 KB)
