Analytical Sciences / Physico-chemical analysis / Thermal analysis / DSC / Pyris DSC 9 Differential Scanning Calorimeter
Pyris DSC 9 Differential Scanning Calorimeter
Perkin Elmer
Performance and reliability for advanced thermal analysis.
The Pyris DSC 9 Differential Scanning Calorimeter enables comprehensive sample analysis, offering precise temperature management and ease of use through its intuitive touchscreen interface.
Advantages

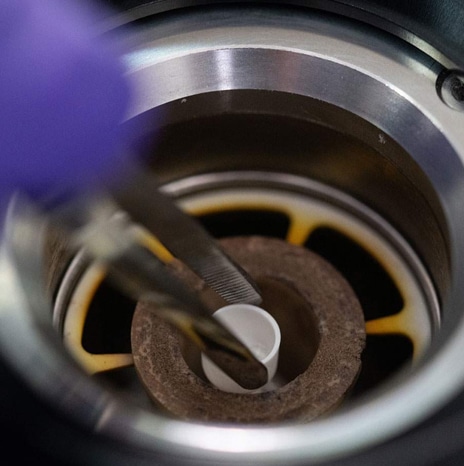

Stainless steel furnace on a copper base, providing precise temperature control, fast heating, and cooling times
ASTM compliance for accurate melting points, thermal stability, and purity measurements
Direct temperature control for more reliable measurements
Extended temperature range up to 750°C

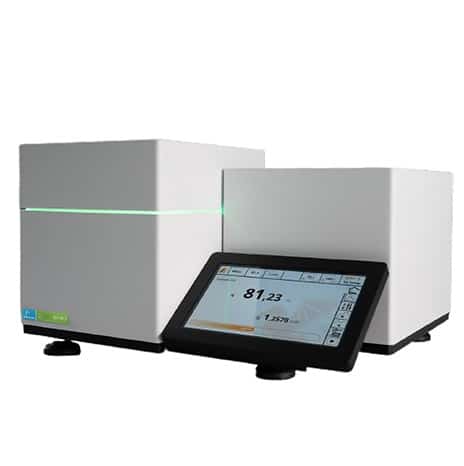

Intuitive touchscreen for easy instrument control
Pyris DSC 9 Differential Scanning Calorimeter represents the next generation of high-temperature calorimetric analysis, reaching temperatures up to 750°C. Designed for high performance, it suits a wide range of industrial and scientific applications. With its stainless steel furnace mounted on a copper base and precise temperature control via an intuitive touchscreen, the DSC 9 ensures fast, accurate, and reliable analyses. It is ideal for applications ranging from polymers to pharmaceuticals.
| Feature | Specifications |
|---|---|
| Dynamic Range | +/- 175 mW |
| Temperature Performance | |
| Temperature Range | -100 to 750 °C |
| Accuracy | +/- 0.05 °C |
| Thermal Precision | < 0.02%1 |
| Data Points per Second | 10 |
| Controlled Heating Rate | 0.1 to 100 °C/min |
| Controlled Cooling Rate | 0.1 to 100 °C/min |
| Calorimetric Performance | |
| Calorimetric Accuracy | +/- 0.2% |
| Calorimetric Precision | < 0.2%1 |
| Indium Response | Ratio >19 mW/°C |
| Purge Gas | Nitrogen, Helium (Inert), Compressed Air, Oxygen (Oxidative), Argon (Inert) |
| Weight | 12 kg |
| Physical Dimensions | 37 x 34 x 32 cm (w x d x h) |
| Instrument Control | Pyris Software control or stand-alone operation using the integrated touchscreen |
Polymers
Pharmaceuticals
Melting point, thermal stability, and purity measurements
Advanced thermal analysis for R&D
Quality control for stringent safety and quality standards
