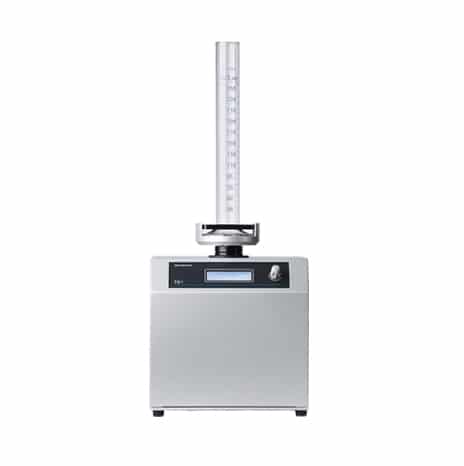

Tap density tester TD1

Sotax

Galery
Galery

Ask for a quote

Contact a technical expert

USP methods I and II included

Turnkey solution for your testing compaction of powders according to USP or EP


Advantages

  • Complies with USP 616, ASTM B 527, DIN ISO EN 787/11 and EP 2.9.15
  • One single position for all measurements with “easy to lock” cylinders
  • LCD display with easy to scroll menus and EP, USP, user-configurable methods
Description
Specification
Applications
Resources

The TD1 is designed to meet different protocols for testing USP powder compaction (USPI and USPII). It comes standard with the 2 specimens, 100 and 250ml, and the validation protocol is integrated. An interface is included for connection of a printer and print test report.

  • Drops/min: 50 – 300 (300 for USP I, 250 for USP II/EP)
  • Total drops: 1 – 9999
  • Drops height: 14 mm +/-2 (USP I), 3 mm +/-0.3 (USP II/EP)
  • N° of stations: 1
  • Interface: RS232, Ethernet port

  • Powder compaction test
