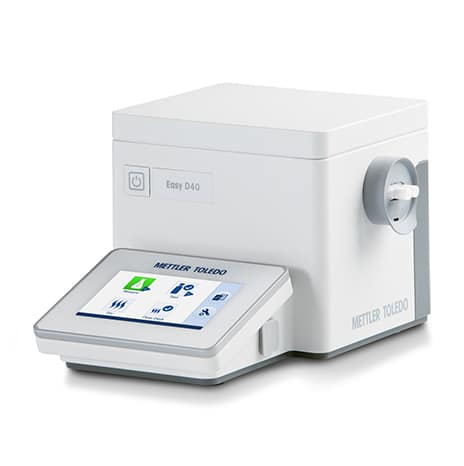

Easy D40 densimeter

Mettler Toledo

Galery
Galery

Ask for a quote

Contact a technical expert

Simple, robust, and reliable

The Easy D40 measures density, specific gravity, Brix, alcohol %, and more with automatic temperature control from 15 to 50 °C. Its compact and robust design makes it suitable for use in laboratory settings or near the production line.






Advantages

  • Clear simplicity: The intuitive user interface based on applications and on-screen user guidance simplifies daily tasks while minimizing operator errors and training time.

  • Reduced measurement errors: Measurements can be observed in real-time via video, while measurement errors are avoided through automatic bubble detection and viscosity correction.

  • Reliable quality control results: Measurement limits can be set for color-coded identification of accepted or rejected samples.

Description
Specification
Applications
Resources
  • Measurement Range (g/cm³): 0 g/cm³ – 3 g/cm³
  • Accuracy ± (g/cm³): 0.0005 g/cm³
  • Repeatability (g/cm³): 0.00005 g/cm³
  • Resolution (g/cm³): 0.0001 g/cm³
  • Temperature Control Range: 15 °C – 50 °C
  • Temperature Regulation: Yes
  • Measurement Scales: Density, Specific Gravity, Alcohol, Acid/Base, Chemical, Salt, API, Sugar, Others
  • Max Number of Methods: 6
  • Minimum Sample Volume: 1.20 mL
  • Integrated Drying Pump: Yes
  • Video Display: Yes
  • Cleanliness Verification: Yes
  • Automatic Bubble Detection (BubbleCheck™): Yes
  • Automatic Viscosity Correction: Yes
  • Results Indication by Color Code: Yes
  • Integrated Measurement Scales: Density/Specific Gravity
  • Alcohol Tables
  • Acid/Base and Chemical Substance Tables
  • User-Programmable Tables/Functions
  • Brix/Sugar Tables
  • On-Screen Help Texts: Yes
  • Languages: English, Italian, Russian, Polish, French, Portuguese, Indonesian, Korean, Chinese, German, Spanish, Thai
  • Display/User Interface: 4.3″ Capacitive Color Touchscreen
  • Product Type: Benchtop Densimeter
  • Connectivity: 3 x USB-A (printer, mouse, keyboard, barcode reader) 1 x USB-B (EasyDirect PC software)
  • PC Software: EasyDirect Density and Refractometry
  • Dimensions (W x H x D): 170 x 156 x 273 mm
  • Weight: 4.8 kg
  • Compliance with Standards: Detailed standards at www.mt.com/dere-norms
  • User Management: Yes
  • Standards and References: Ph. Eur. 2.2.5, Chinese Pharmacopoeia 0601, ISO 2811-3, AOAC 988.06, GB/T 13531.4-2013, IP200/52, GBT 11540-2008, ASTM D 4806, API Std 2540, ASTM D 1475, USP Chapter 841, ISO/EN 15212-1, ASTM D 6448, Pharmacopeia Eu. (2005), JP (2005), USP (2006), ISO 91, ANSI 1250, GB5009.225-2016, ASTM D 1250, ASTM D5931, OIV MA-BS-03 and/or MA-BS-03, JJF1070-2005
  • SimpleCheck™ Standards: Yes
  • LIMS Connectivity: No
