The Volscan Profiler VSP600C
Stable Micro Systems

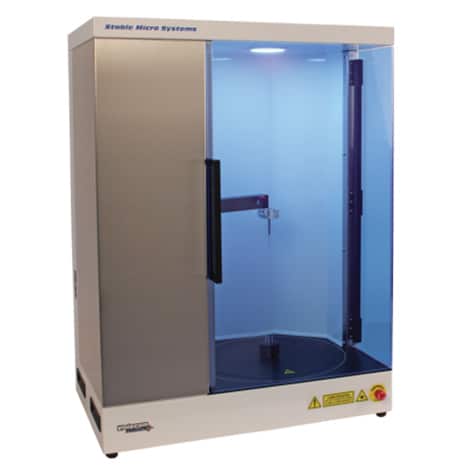

The Volscan Profiler is a benchtop laser-based scanner that measures the volume, density and dimensional profiles of solid products.
Advantages
- Typical test time less than 60 seconds
- Easy location of samples and disposable sample platforms
- Measurements are operator independent
- Weighs sample automatically
- Most comprehensive dimensional analysis available
- Allows full product or ‘slice’ analysis
- Spreadsheet archiving
- 2D and 3D sample representations
- Language Editor
- Bar code scanner compatible
- Calibration and volume verification tools
This non-contact measurement system offers considerable advantages over contact and displacement techniques which purely measure volume.
The rapid 3-dimensional digitisation of products enables the automatic calculation of several detailed dimension related parameters, the results of which may be mathematically manipulated for immediate use or future retrieval in a variety of data formats.
With the Volscan Profiler, manufacturers have a precise and fast method for the measurement of the volume, density and dimensions of solid products in order to be able to control and monitor their manufacture.
Sample Dimensions VSP600C
Max diameter: 380mm
Max height: 575mm
Max sample weight: 3kg
Movement and Measurement
Variable scanning resolution
Volume accuracy: ±1%
Minimum test time for 150mm high product: 22 seconds
** Rotational speed options: 0.5 / 1.0 / 1.5rps
Data acquisition: 400 points per revolution
Vertical step size options: 0.05mm – 50mm
Sample weight accuracy: <1%
Dimensions
Instrument weight: 41kg
Overall height: 939mm
Overall width: 690mm
Overall depth: 480mm
- Research and development
- Quality assurance
- Process control
- Academic research
