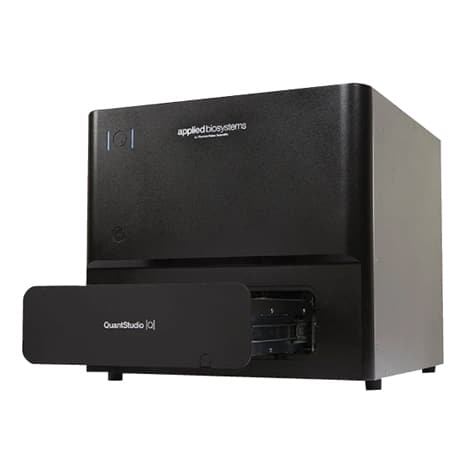

Digital thermocycler QuantStudio Absolute Q
Thermo Fisher Scientific
Unmatched precision and speed
The QuantStudio Absolute Q Digital PCR system combines the power of absolute quantification through digital PCR with the simplicity of a qPCR workflow. Using digital PCR is now easier than ever with a streamlined process that requires just a single handling step, taking only 5 minutes.
Advantages
- Precise volume of the micro-chamber
- Consistent scanning of samples
- Analysis of over 95% of the loaded volume
- 16 samples per plate
- 20,000 micro-chambers per reaction
- <5% dead volume
The Applied Biosystems QuantStudio Absolute Q Digital PCR (dPCR) platform is based on plate-based digital PCR technology, powered by patented Microfluidic Array Plates (MAP). This system integrates all necessary steps for dPCR compartmentalization, thermocycling, and data acquisition into a single instrument. The dPCR workflow mirrors that of traditional qPCR, enhancing ease of use, minimizing practical steps, and maximizing consistency.
The QuantStudio Absolute Q Digital PCR offers a high-quality, consistent, and user-friendly solution for researchers and clinicians looking to embrace the quantification revolution. Utilizing consumable plates with Microfluidic Array technology, it enables analysis of over 95% of the sample across more than 20,000 micro-chambers, delivering results in under 90 minutes.
- Unpacked Dimensions: 620 mm (W) x 600 mm (D) x 540 mm (H) / 24.5″ (W) x 23.5″ (D) x 21.2″ (H)
- Packed Dimensions: 826 mm (W) x 940 mm (D) x 899 mm (H) / 32.5″ (W) x 37″ (D) x 35″ (H)
- Weight: Approximately 60 kg / 132 lb
- Connections: Power, USB 3.0 (to dedicated PC)
- Cooling Mode: Forced convection
- Illumination: Rax, blue, high-power green phosphor LED
- Optical Channels: Five (fixed configuration)
- Power Input: 100–240 V AC, 50–60 Hz
- Rated Power: 1,200 to 1,600 watts
- Rated Current: 12 A (110 V), 8.5 A (230 V)
- Maximum Noise Level: 70 dB
