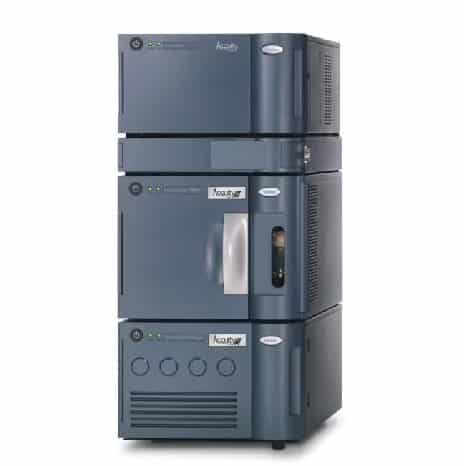

ACQUITY UPLC H-Class system

Waters

Ask for a quote

Contact a technical expert | Dowload the datasheet

An unequalled resolution

ACQUITY UPLC System The H-Class present the highest resolution among all quaternary chromatographic systems on the market.

Advantages

Flexibility of a multi-solvent mixture
Injections of great loyalty – precise operation
Exact temperature control for the entire column
Low Dispersion capacity detection – single chromatographic system produces real UPLC performance

Description

Specification

Applications

Resources

The ACQUITY UPLC H-Class System was conceived to help you to switch your methods to improve efficiency and to prepare the future of your laboratory by choosing to opt for UPLC technology at your pace. This means that you can continue using your HPLC and UHPLC methods until you are ready to deploy the UPLC technology. It reduces the cost of analysis by sample while getting your analytical results faster with the powerful tools offered by Waters, facilitating the development of your analytical process.

Amino acid systems
XBridge BEH XP columns
Low pressure quaternary gradient
Number of solvents: 1 to 4, in any proportion
Membrane degasser: 4 degassing chambers, for the solvent channels, an additional one for the injector rinsing solvent.
Flow rate: 0.010 to 2 ml / min
Piston rinsing: Automatic
“Flow-Through-Needle” concept
Variable volume injector
Maximum working pressure: 15,000 psi
An injection method, a rinsing solvent
Bottles, plates of various formats
Injection cycle <30 sec
Composition accuracy: <0.15% RSD
Flow accuracy: <0.075% RSD
Detector: UV PDA FLUO RID COND MS (Qda quadrupole, Rda TOF, TOF), MSMS (Triple Quad, QTOF)
